Circuit Diagram

(M/T)

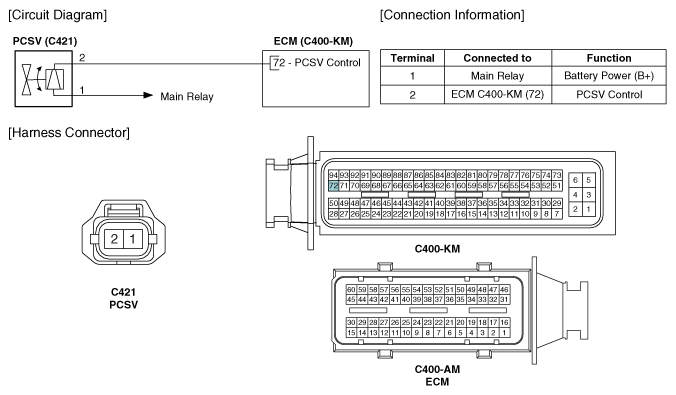

Fig 1: Purge Control Solenoid Valve (PCSV) Circuit Diagram - M/T
G11794930Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

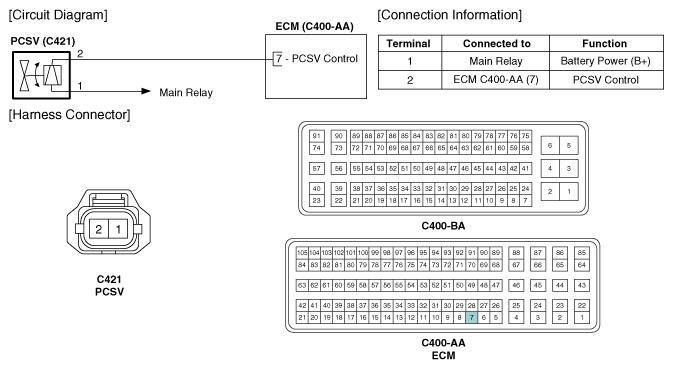

Fig 2: Purge Control Solenoid Valve (PCSV) Circuit Diagram - A/T
G11794931Courtesy of KIA MOTORS AMERICA, INC.
