Circuit Diagram

(M/T)

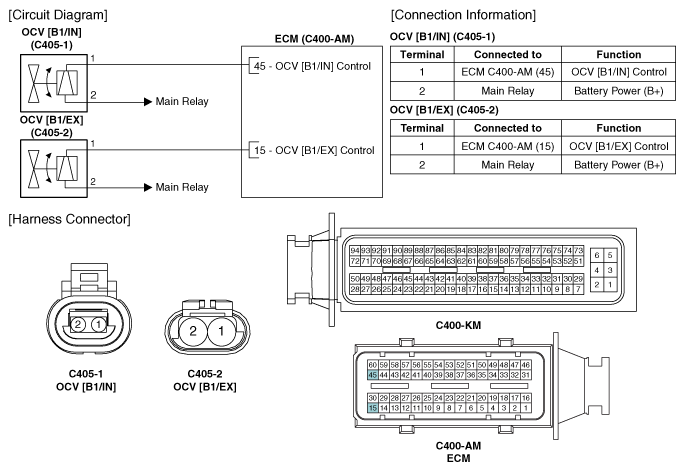

Fig 1: CVVT Oil Control Valve (OCV) Circuit Diagram - M/T
G11794934Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

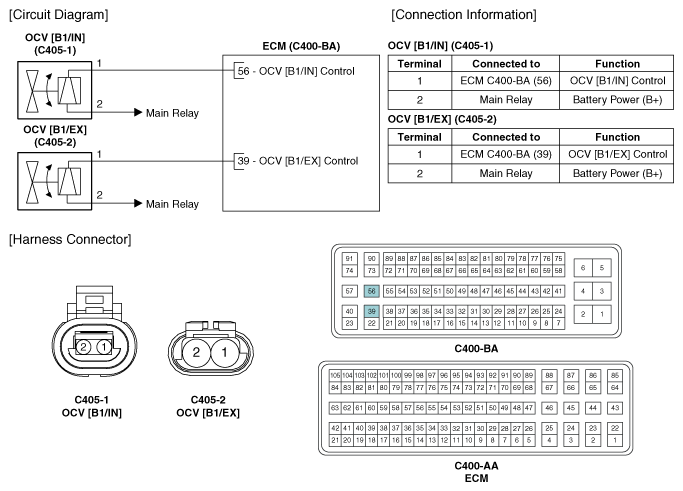

Fig 2: CVVT Oil Control Valve (OCV) Circuit Diagram - A/T
G11794935Courtesy of KIA MOTORS AMERICA, INC.
