Components And Components Location: Components

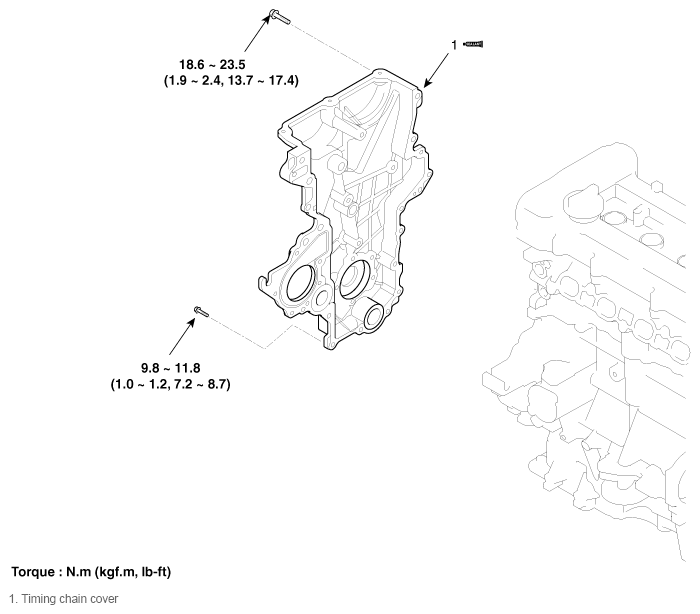

Fig 1: Timing Chain Cover Components Location

G11794339

Courtesy of KIA MOTORS AMERICA, INC.
