Components And Components Location: Components

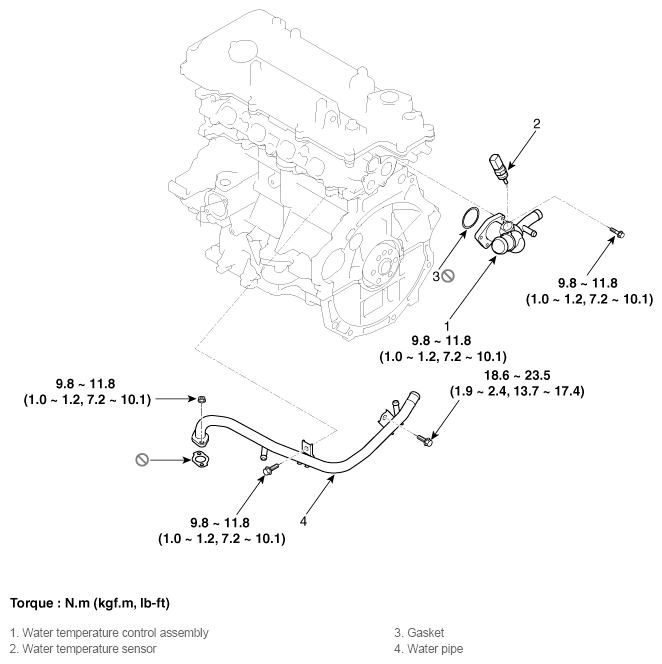

Fig 1: Exploded View Of Water Temperature Control Assembly With Torque Specification

G11794548

Courtesy of KIA MOTORS AMERICA, INC.
