Monitor GDS Data
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Set up 'GDS' with 'GDS TPMS'.
- Select "Vehicle S/W Management" function.
- Select the "Sensor Status" mode of "Data Treatment" item.

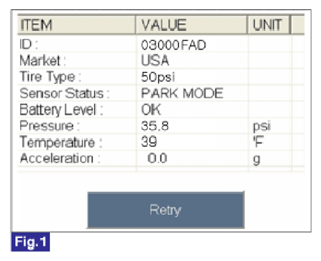

- Position the GDS TPMS as near as possible to the tire. (Fig 1)
(Reading may take 30~60 seconds depending on the sensor's characteristics.)
- Monitor the parameter of "Temperature" on the screen.
Specification: Below 230°F (110°C)
- Is parameter within specifications?
YES
- Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Due to damaged tires, driving of lower pressure tires, and the excessive actuation of brake. these may cause a temporary fault code.
- First check the pressure of tires and the status of tires, second repair tires or replace with known-good tires as necessary, finally go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
