Components And Components Location: Components

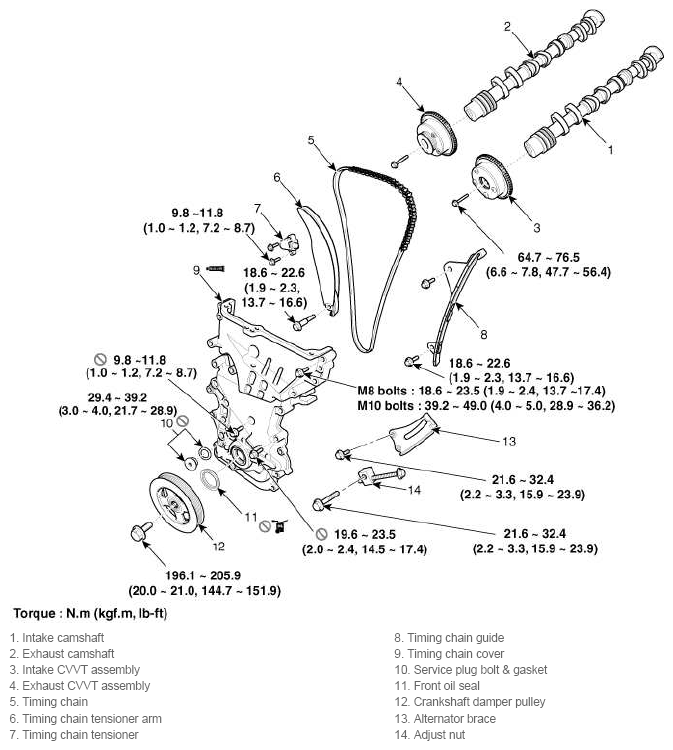

Fig 1: Timing System Components Location

G11793113

Courtesy of KIA MOTORS AMERICA, INC.
