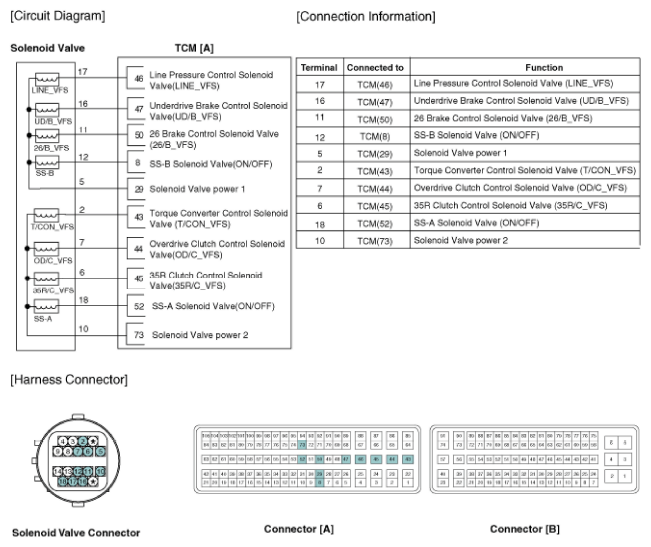

Home >> Kia >> 2016 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 1.8L >> Line Pressure Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
