Components And Components Location: Components

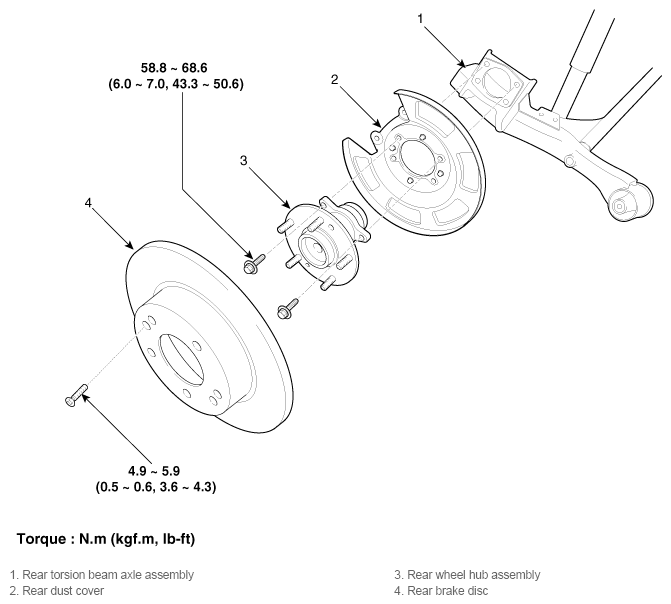

Fig 1: Rear Hub - Carrier Components With Torque Specification

G11795395

Courtesy of KIA MOTORS AMERICA, INC.
