Home >> Kia >> 2016 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.8L >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

(M/T)

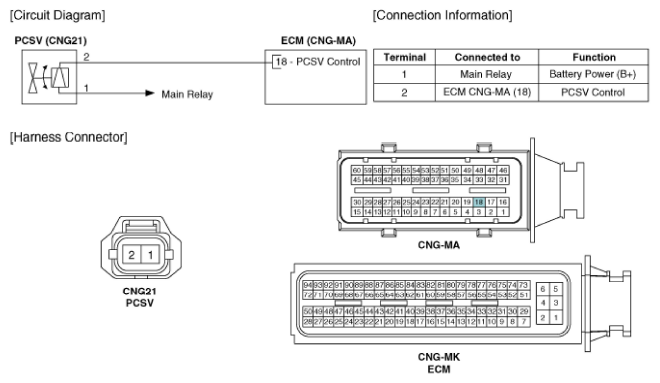

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T)
G11793882Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

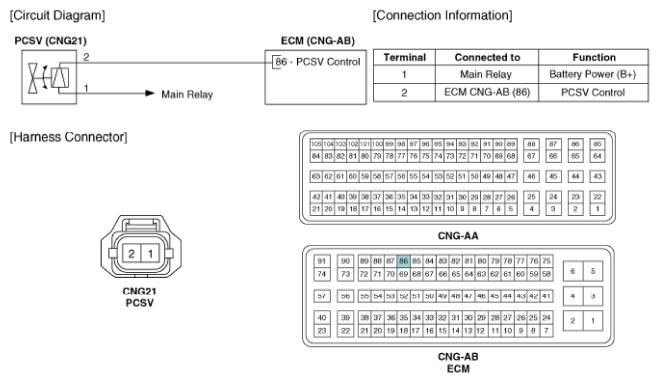

Fig 2: Purge Control Solenoid Valve Circuit Diagram (A/T)
G11793883Courtesy of KIA MOTORS AMERICA, INC.
