Circuit Diagram

(M/T)

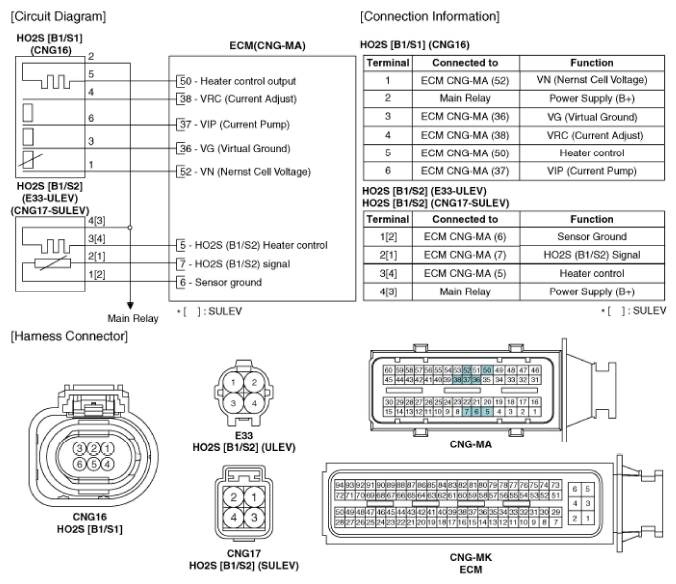

Fig 1: Heated Oxygen Sensor (HO2S) Circuit Diagram (M/T)
G11793852Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

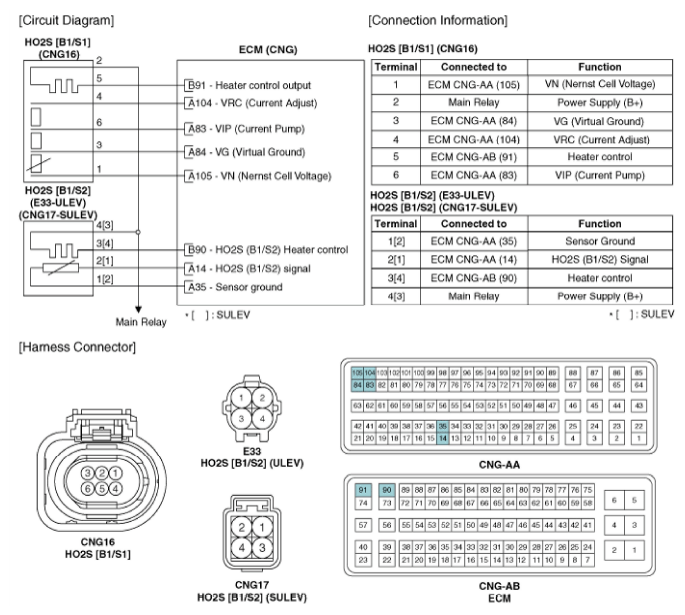

Fig 2: Heated Oxygen Sensor (HO2S) Circuit Diagram (A/T)
G11793853Courtesy of KIA MOTORS AMERICA, INC.
