Repair Procedures: Inspection

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
    1. Power seat control switch
    2. Lumbar support switch
    Fig 1: Power Seat Control And Lumbar Support Switch Connector Terminals
    G11792204Courtesy of KIA MOTORS AMERICA, INC.

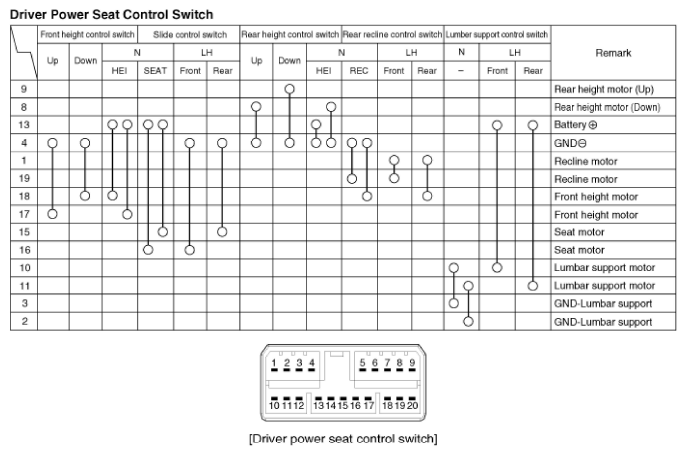

    Fig 2: Drive Power Seat Control Switch Chart
    G11792205Courtesy of KIA MOTORS AMERICA, INC.

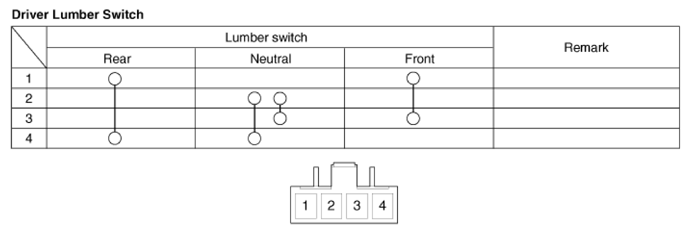

    Fig 3: Drive Lumber Switch Continuity Reference Chart
    G11792206Courtesy of KIA MOTORS AMERICA, INC.
