Components Location

[SULEV Type]

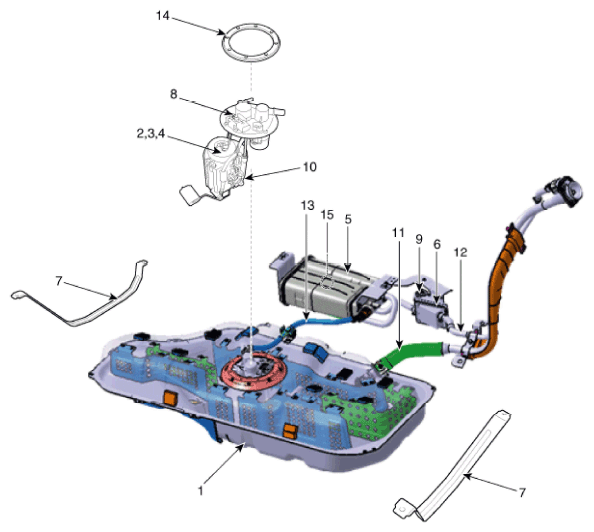

Fig 1: Fuel Delivery System Components Location (SULEV Type)
G11793961Courtesy of KIA MOTORS AMERICA, INC.

[LEV2 Type]

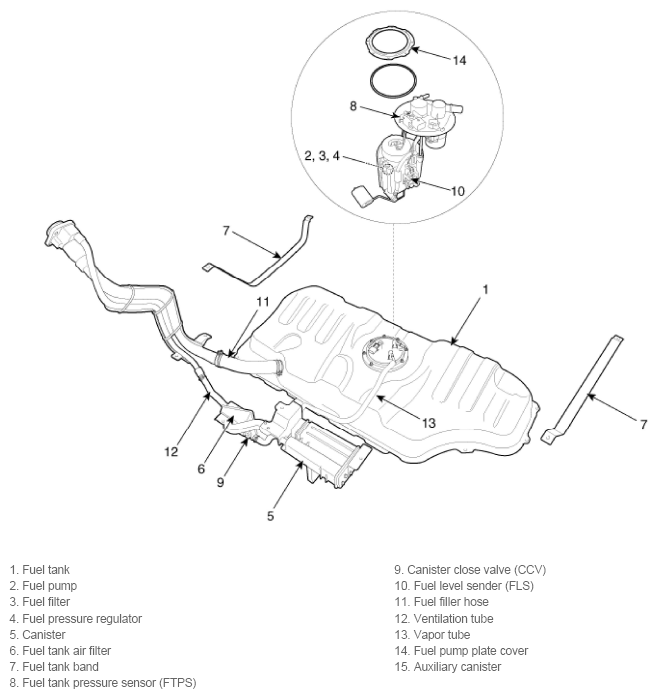

Fig 2: Fuel Delivery System Components Location (LEV2 Type)
G11793962Courtesy of KIA MOTORS AMERICA, INC.
