Components And Components Location: Components

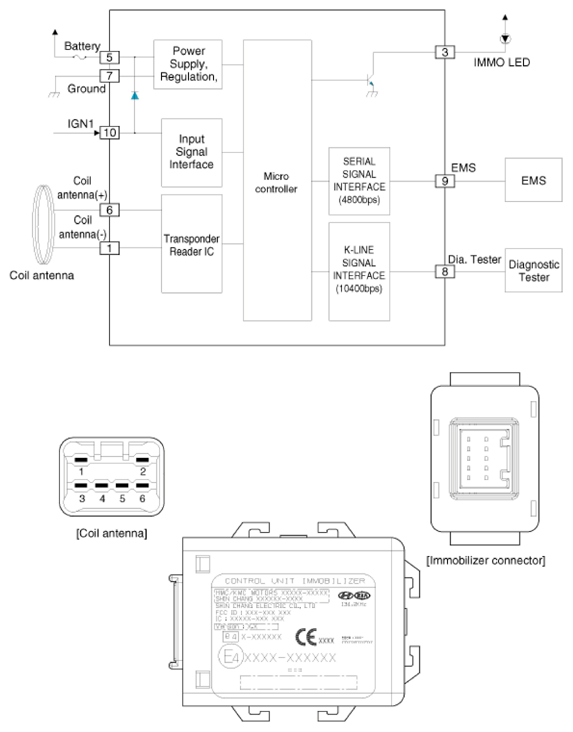

Fig 1: Immobilizer System Communication Diagram

G11792544

Courtesy of KIA MOTORS AMERICA, INC.
