Components Location

WARNING: This page is about a different variant/trim than selected.

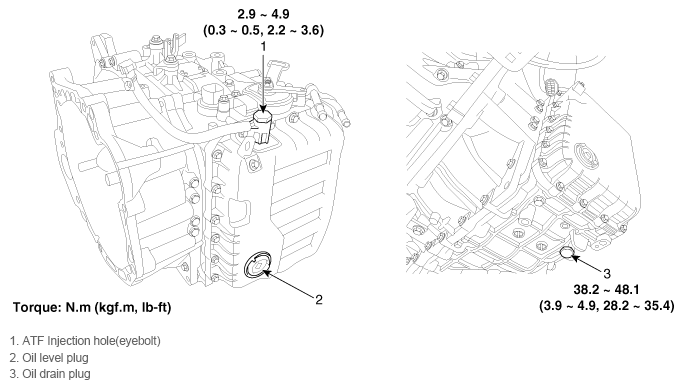

Fig 1: Locate Automatic Transaxle System Fluid Injection Hole, Oil Drain And Oil Level Plug
G11795171Courtesy of KIA MOTORS AMERICA, INC.
