Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

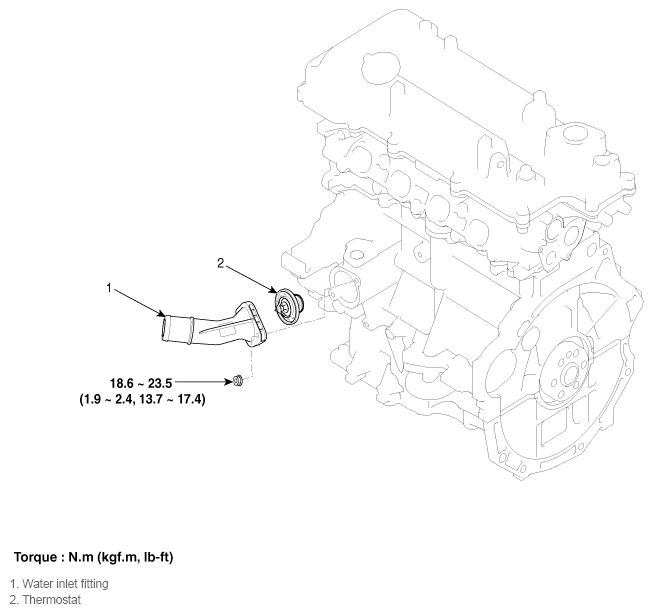

Fig 1: Water Inlet Fitting And Thermostat With Torque Specification
G11794560Courtesy of KIA MOTORS AMERICA, INC.
