Repair Procedures: Replacement
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

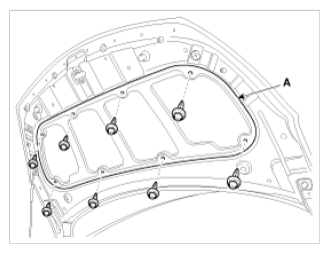

- Using a clip remover, detach the clips, and remove the hood insulator pad (A).
NOTE:
- Be careful not to scratch the hood panel.
Courtesy of KIA MOTORS AMERICA, INC.
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
