Rear Power Window Switch

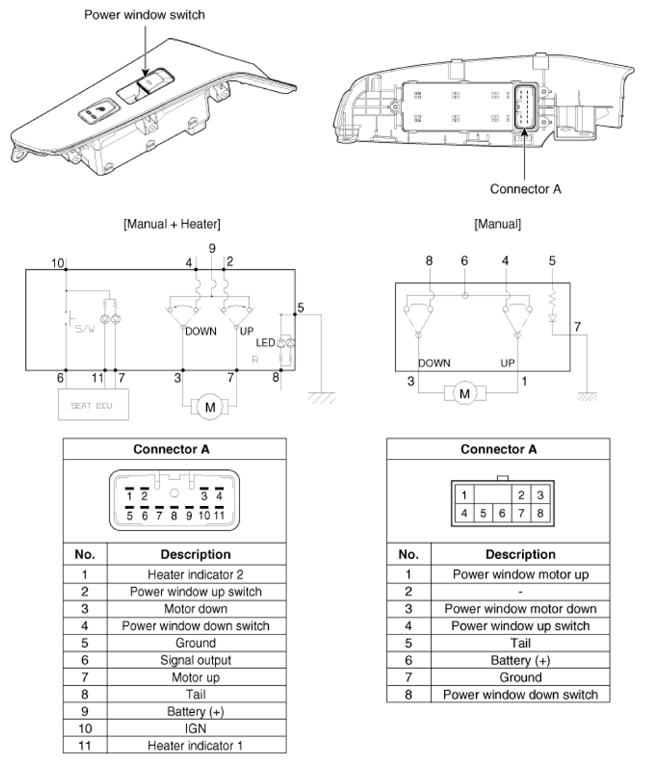

Fig 1: Rear Power Window Switch Circuit Diagram

G11792376

Courtesy of KIA MOTORS AMERICA, INC.
