Circuit Diagram

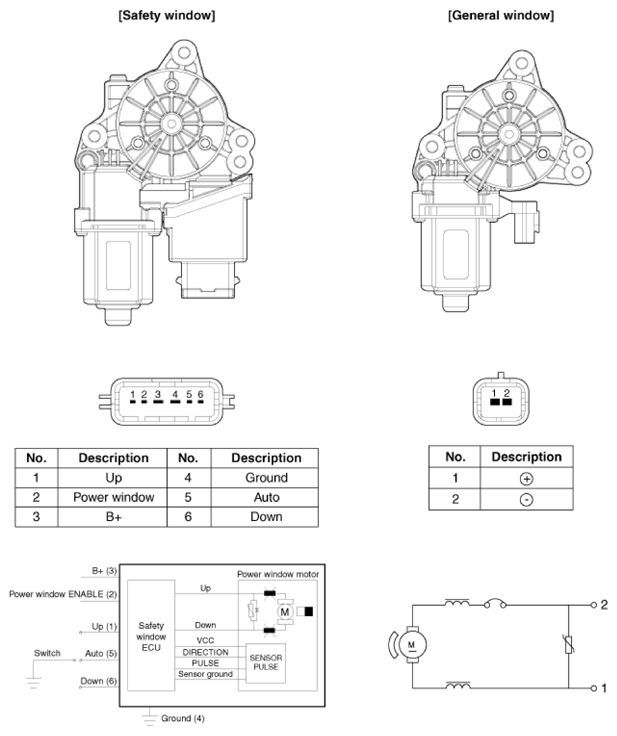

Fig 1: Power Window Motor Circuit Diagram

G11792365

Courtesy of KIA MOTORS AMERICA, INC.
