Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data  " mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

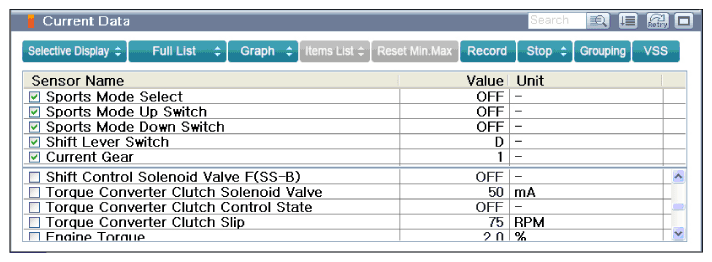

    Fig 1: Screen Display - Current Data (D Range)
    G11799643Courtesy of KIA MOTORS AMERICA, INC.

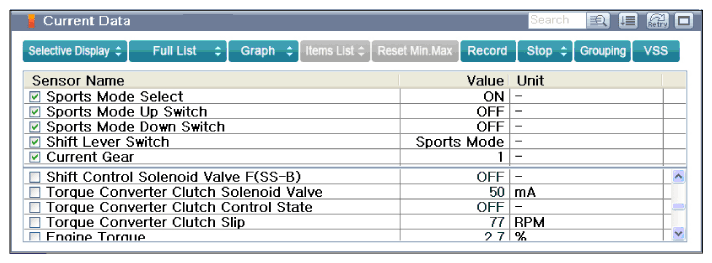

    Fig 2: Screen Display - Current Data (Sports Mode ON)
    G11799644Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Screen Display - Current Data (Sports Mode Up Switch ON)
    G11799645Courtesy of KIA MOTORS AMERICA, INC.
    Fig 4: Screen Display - Current Data (Sports Mode Down Switch ON)
    G11799646Courtesy of KIA MOTORS AMERICA, INC.
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
