Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data  " mode and monitor "Shift Lever switch" parameter.
  4. Change a shift lever from P-range to D-range.

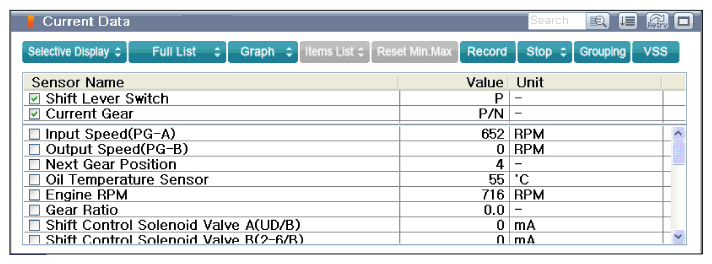

    Fig 1: Screen Display - Current Data (P Range)
    G11799466Courtesy of KIA MOTORS AMERICA, INC.

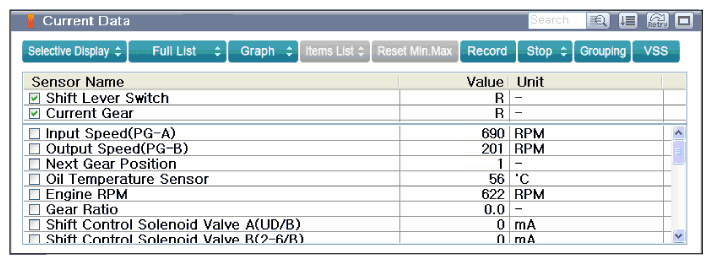

    Fig 2: Screen Display - Current Data (R Range)
    G11799467Courtesy of KIA MOTORS AMERICA, INC.

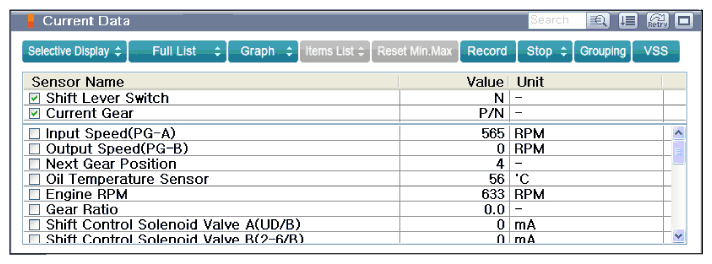

    Fig 3: Screen Display - Current Data (N Range)
    G11799468Courtesy of KIA MOTORS AMERICA, INC.

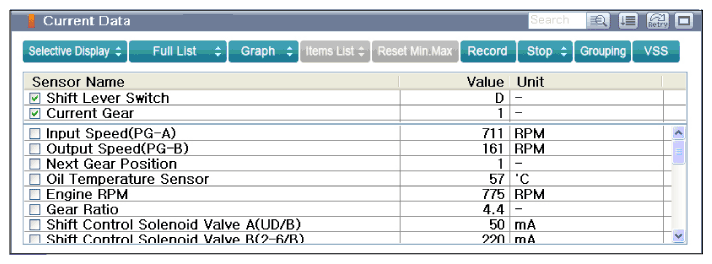

    Fig 4: Screen Display - Current Data (D Range)
    G11799469Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
