System Circuit Diagram: Notes

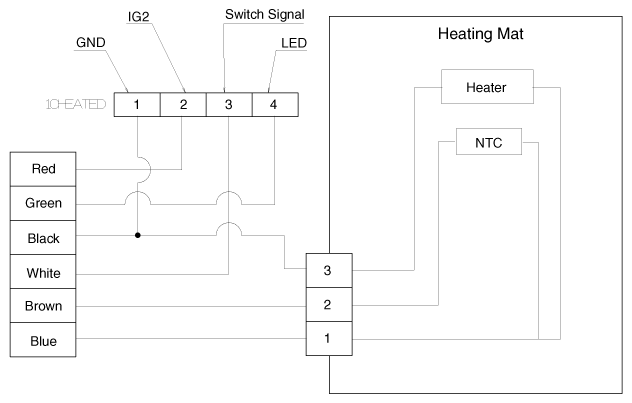

Fig 1: Heated Steering Wheel System Circuit Diagram
G11795533Courtesy of KIA MOTORS AMERICA, INC.

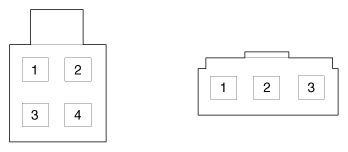

Fig 2: Heated Steering Wheel Connector Terminals
G11795534Courtesy of KIA MOTORS AMERICA, INC.
