Repair Procedures: Inspection

  1. Measure terminal-to-terminal resistance of the blower resistor.
  2. If the measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

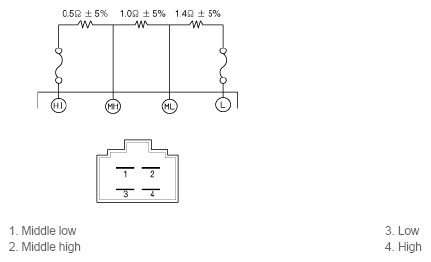

Fig 1: Measure Terminal-To-Terminal Resistance Of Blower Resistor
G11793059Courtesy of KIA MOTORS AMERICA, INC.
