Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  3. Loosen the seat belt buckle mounting bolt and remove the seat belt buckle sensor (A).

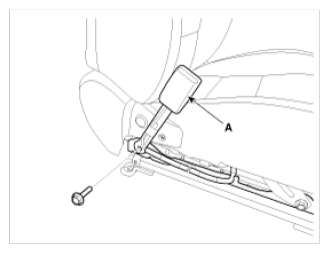

    Fig 1: Seat Belt Buckle Sensor And Mounting Bolts
    G09743677Courtesy of KIA MOTORS AMERICA, INC.
