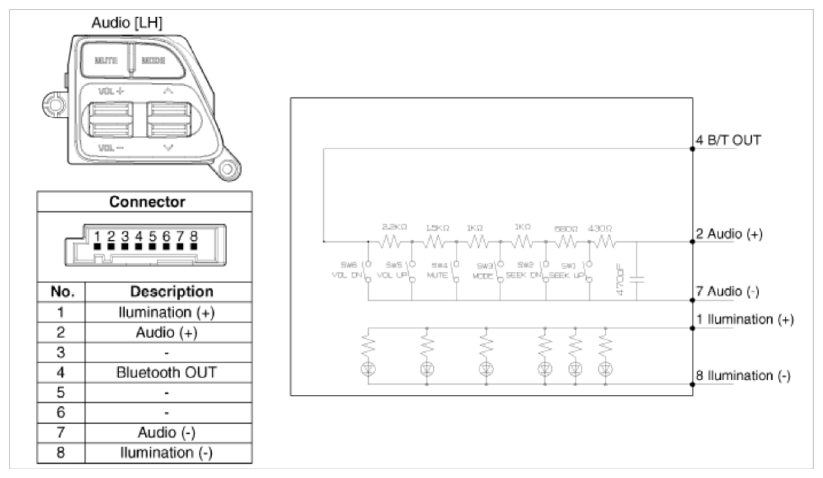

Fig 1: Audio Remote Control System Schematic (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

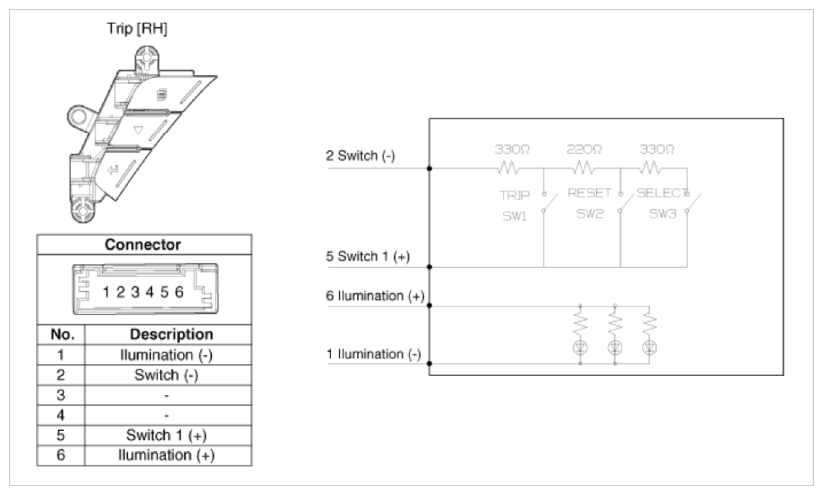

Fig 2: Audio Remote Control System Schematic (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

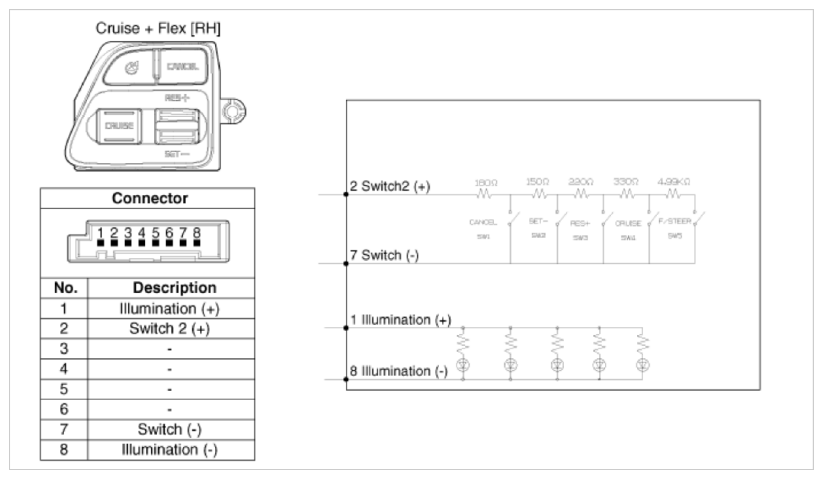

Fig 3: Audio Remote Control System Schematic (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

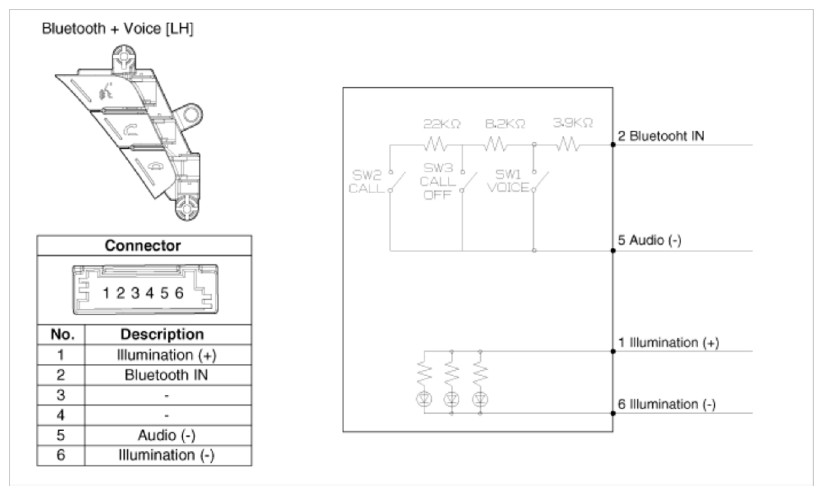

Fig 4: Audio Remote Control System Schematic (4 Of 4)
