Engine Oil Schematics

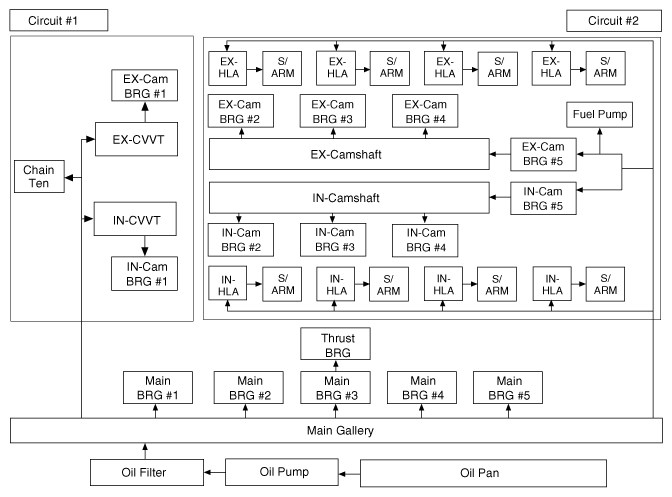

Fig 1: Engine Oil Schematic Diagram

G11796697

Courtesy of KIA MOTORS AMERICA, INC.
