Charging System - 2.0L: Battery: Troubleshooting

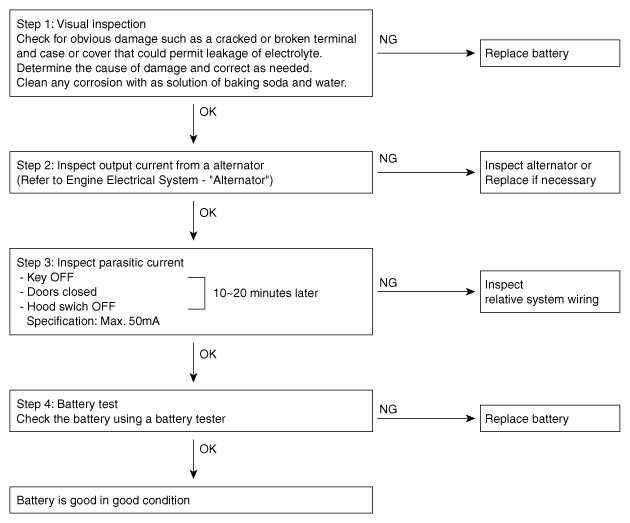

Fig 1: Troubleshooting Flow Chart

G11796800

Courtesy of KIA MOTORS AMERICA, INC.
