Circuit Diagram

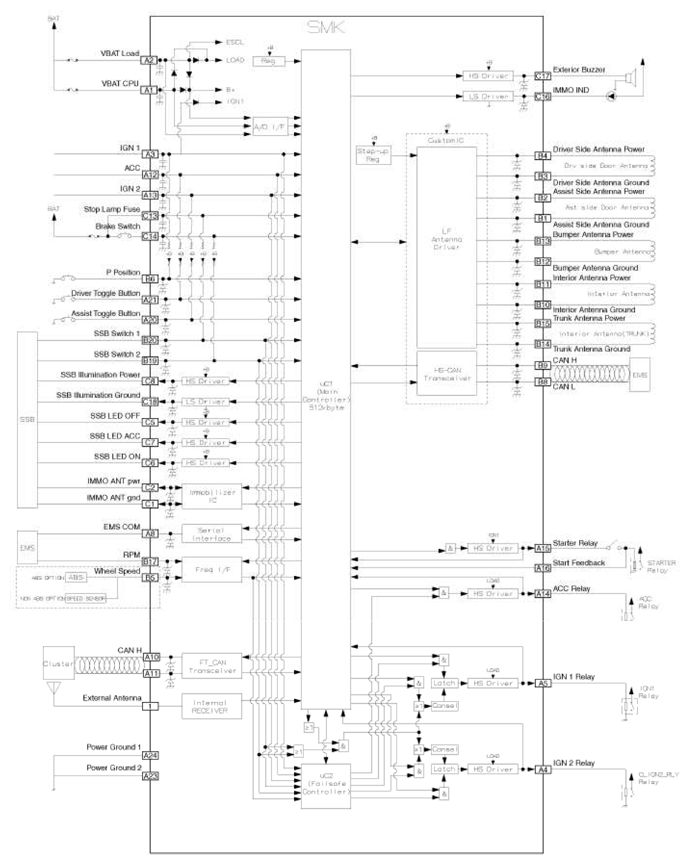

Fig 1: Smart Key Unit Circuit Diagram

G11792095

Courtesy of KIA MOTORS AMERICA, INC.
