Circuit Diagram

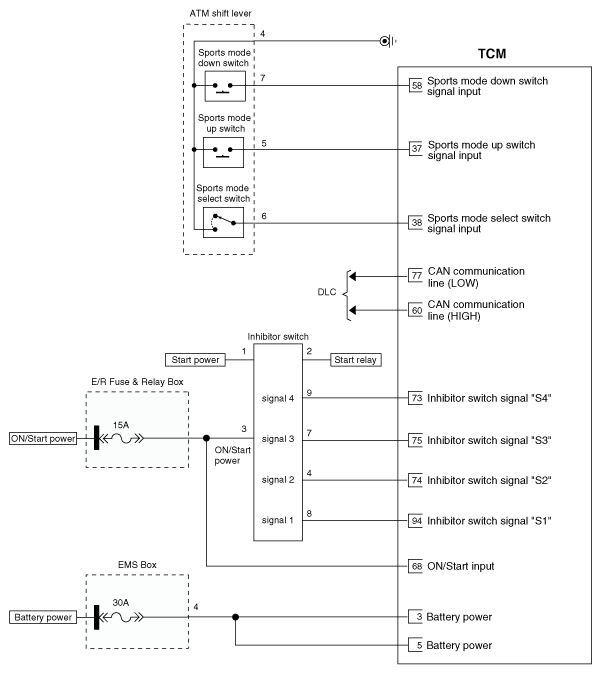

Fig 1: Transaxle Control Module (TCM) Circuit Diagram (1 Of 2)
G11797151Courtesy of KIA MOTORS AMERICA, INC.

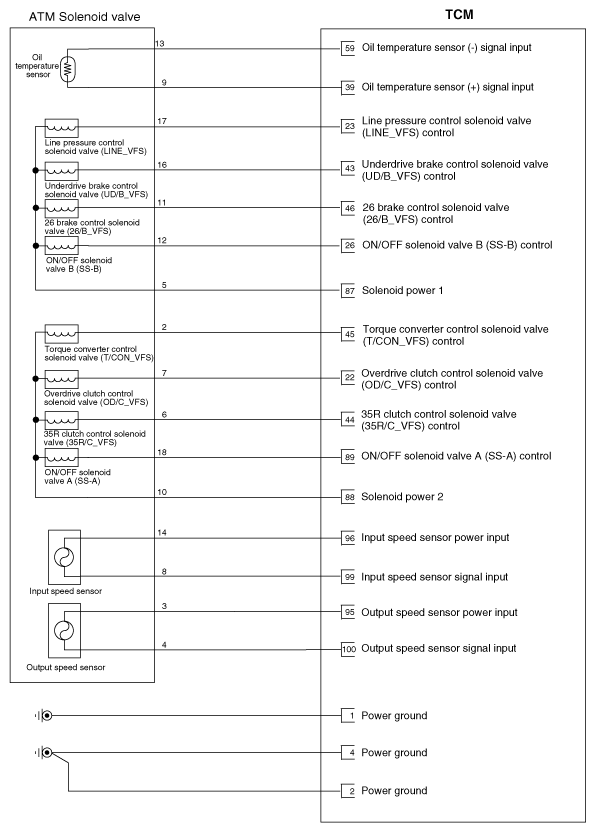

Fig 2: Transaxle Control Module (TCM) Circuit Diagram (2 Of 2)
G11797152Courtesy of KIA MOTORS AMERICA, INC.
