Engine Control System Diagnosis - 2.0L (1 Of 3)
>>
DTC P0222: Throttle Position Sensor 2 Signal Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

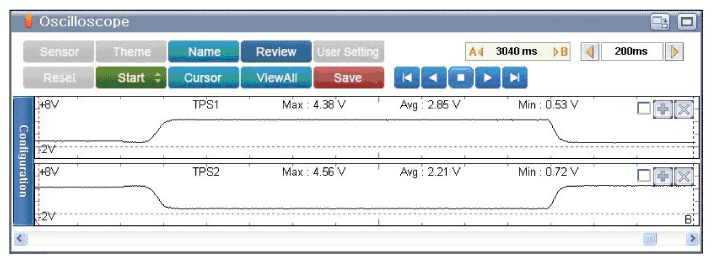

Fig 1: Scantool Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
