Circuit Diagram

(M/T)

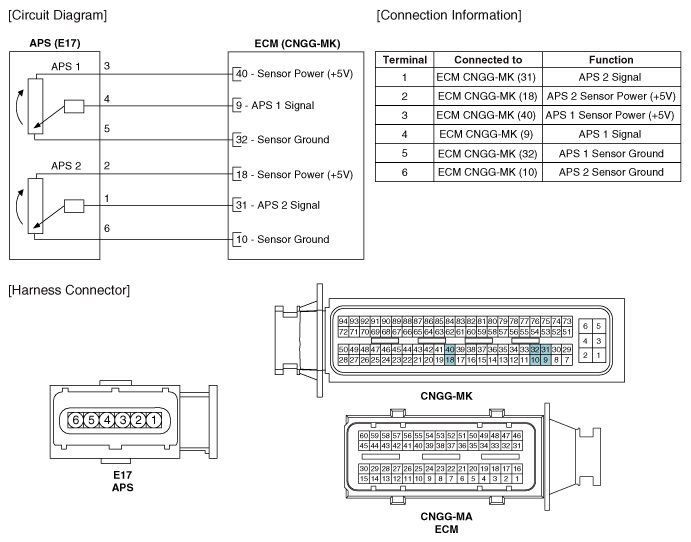

Fig 1: Accelerator Position Sensor Circuit Diagram (M/T)
G11796958Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

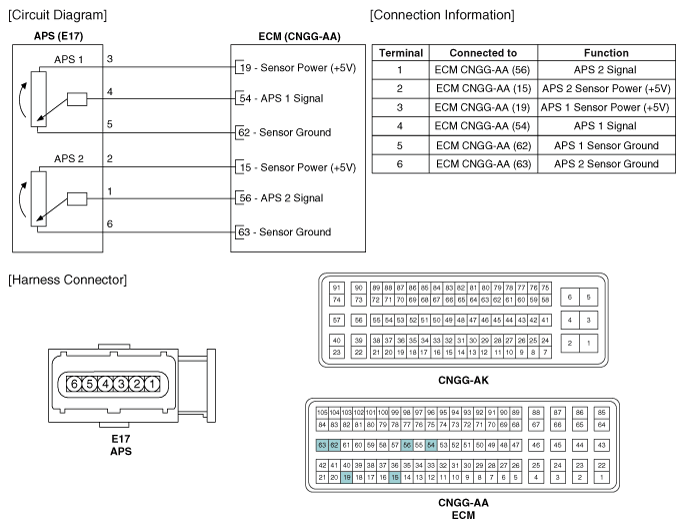

Fig 2: Accelerator Position Sensor Circuit Diagram (A/T)
G11796959Courtesy of KIA MOTORS AMERICA, INC.
