Components And Components Location: Components

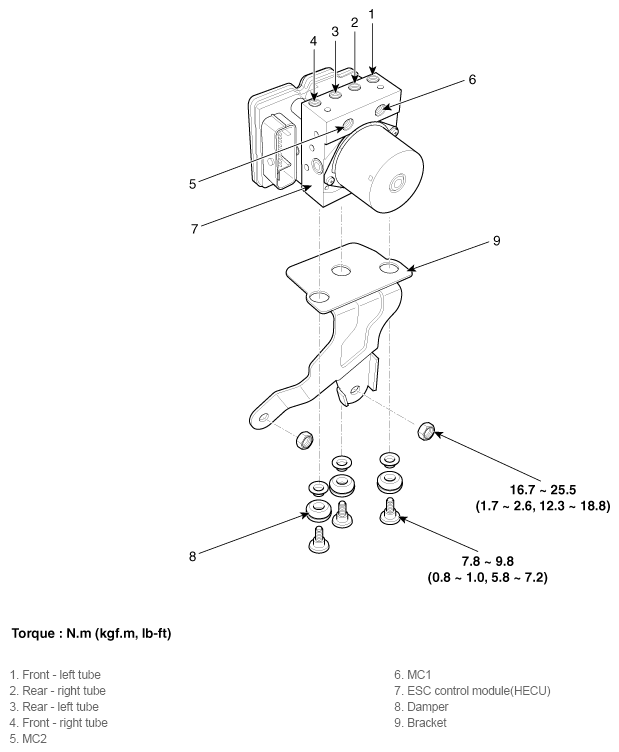

Fig 1: ESC Control Module Components With Torque Specification

G11795829

Courtesy of KIA MOTORS AMERICA, INC.
