AVN Head Unit Connector (AVN)

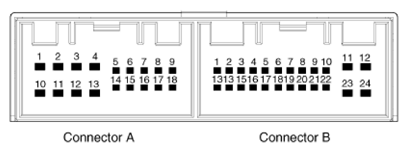

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | MM CAN high |
| 2 | Front left speaker (+) | Ground |
| 3 | Front right speaker (+) | Parking (M/T) |
| 4 | Rear right speaker (+) | Steering remocon |
| 5 | Back view ground | - |
| 6 | Back view power | Igntion |
| 7 | ALT L | - |
| 8 | Illumination (+) | AUX R input |
| 9 | Reverse | AUX ground |
| 10 | Rear left speaker (-) | Mic (+) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | Battery (+) |
| 13 | Rear right speaker (-) | MM CAN low |
| 14 | Back view video ground | Auto light |
| 15 | Back view video | P position (A/T) |
| 16 | Door unlock | Vehicle speed |
| 17 | Illumination (-) | Remote control ground |
| 18 | Remote antenna | - |
| 19 | - | |
| 20 | AUX detect | |
| 21 | AUX L input | |
| 22 | Mic (-) | |
| 23 | Ground | |
| 24 | Ground |
