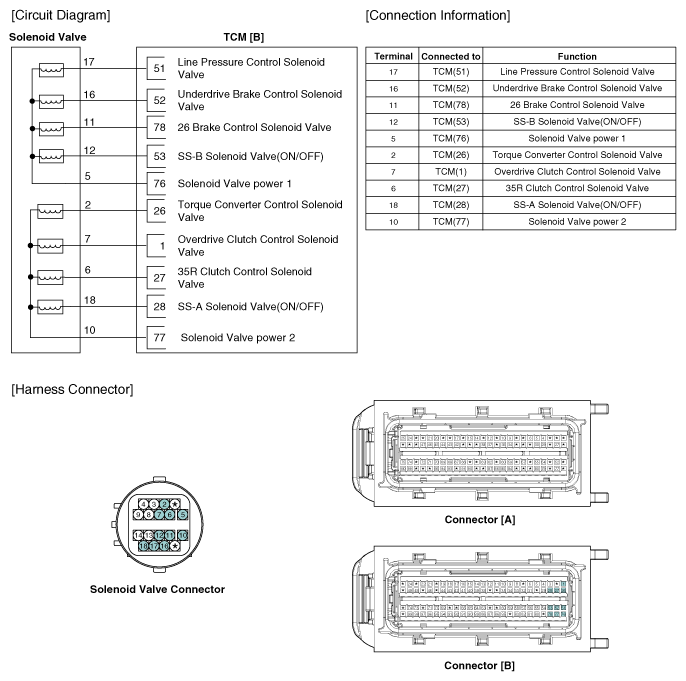

Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Overdrive Clutch Control Solenoid Valve(OD/C_VFS) >> Schematic Diagrams >> Circuit Diagram
