General Information: General Description

This is DTC which is related with communication error between SCM and other units.

* Body CAN communication Control Units: IPM(Inter Panel Module), DDM(Drive Door Module), ADM(Assist Door Module), PSM(Power Seat Module), SCM(Steering Control Module), SMK(Smart Key Module).

*¹ CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

*² LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

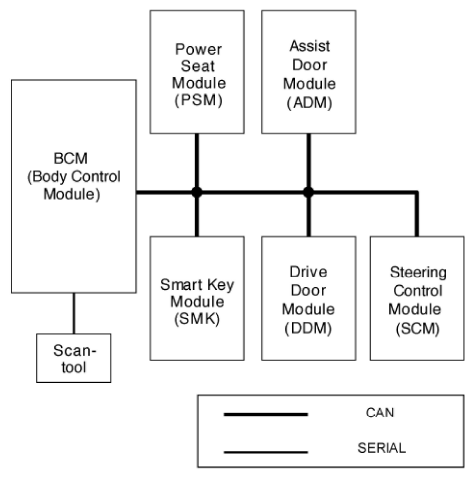

Fig 1: Body Control Module Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
