GDS Data Analysis

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "Diagnostic Trouble Codes(DTC)  " mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition " table).

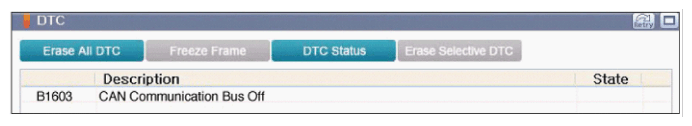

    Fig 1: Scantool Display - Diagnostic Trouble Codes
    G11792950Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the same "Diagnostic Trouble Codes(DTC)  " occurred again?

    YES

    • Go to next procedure.

    NO

    • Fault is intermittent caused by poor contact in the SCM's connector or was repaired and SCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
