Signal Waveform & Data

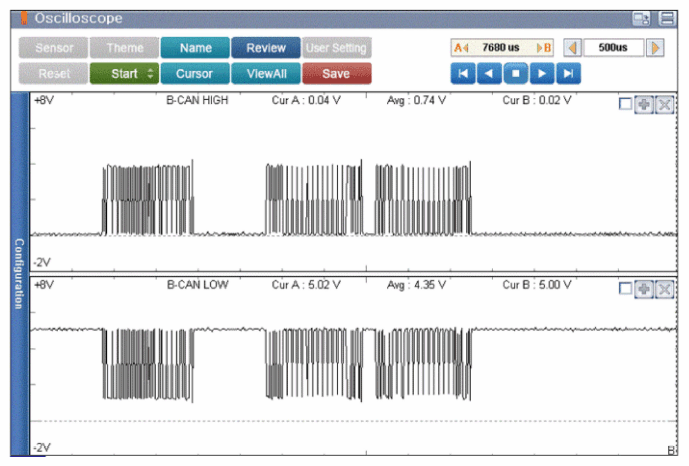

Fig 1: Scantool Display - CAN High And Low Signal Waveform
G11792943Courtesy of KIA MOTORS AMERICA, INC.

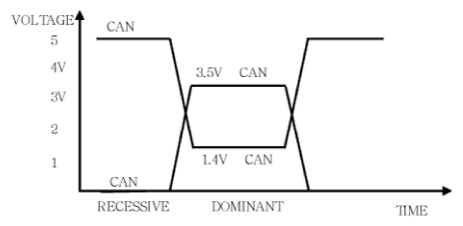

Fig 2: Scantool Display - CAN BUS Voltage Level (Low Speed CAN)
G11792944Courtesy of KIA MOTORS AMERICA, INC.
