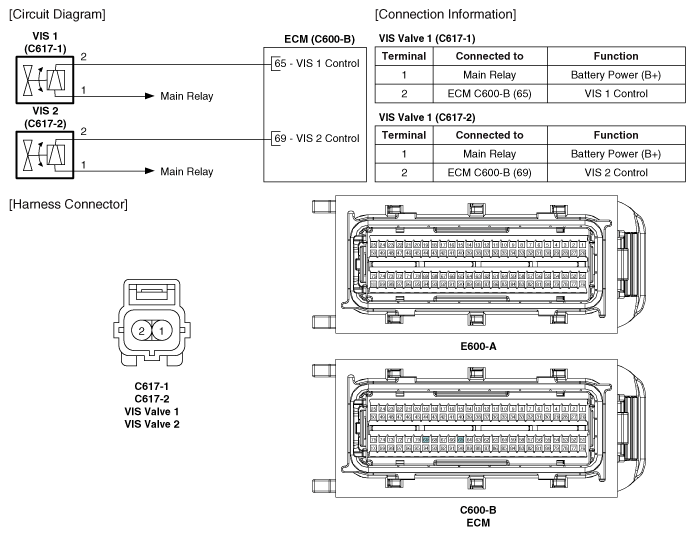

Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram
