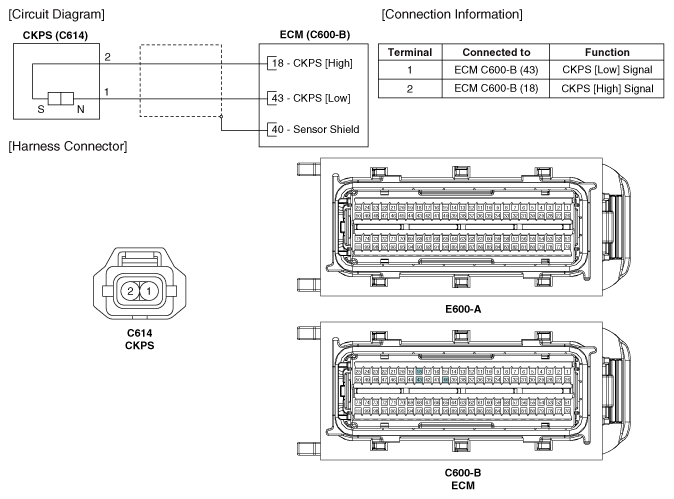

Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram
