Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub - Axle >> Components and Components Location >> Components

Components and Components Location: Components

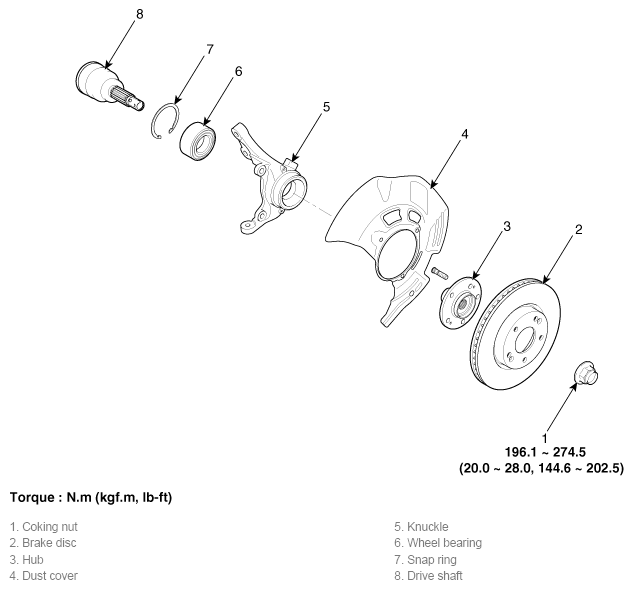

Fig 1: Exploded View Of Front Hub - Axle With Torque Specification

G11784436

Courtesy of KIA MOTORS AMERICA, INC.
