Components and Components Location: Components

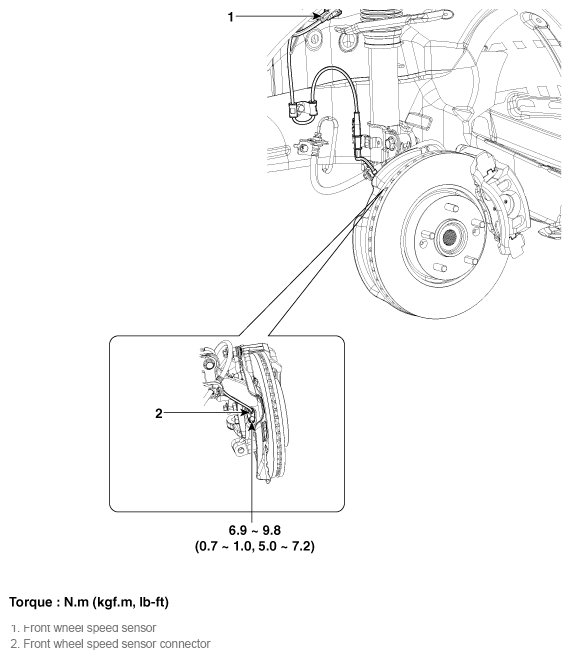

Fig 1: Locating Front Wheel Speed Sensor Components With Torque Specification

G11784975

Courtesy of KIA MOTORS AMERICA, INC.
