FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".
Fig 1: GDS Display Screen - FOB Key Status Information (1 Of 2)
G11785540Courtesy of KIA MOTORS AMERICA, INC.

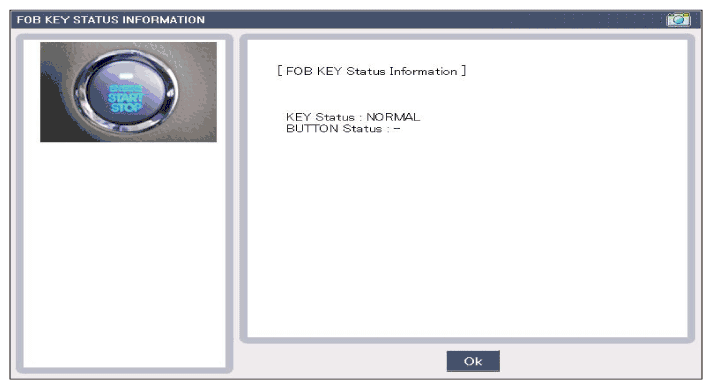

Fig 2: GDS Display Screen - FOB Key Status Information (2 Of 2)
G11785541Courtesy of KIA MOTORS AMERICA, INC.
