Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

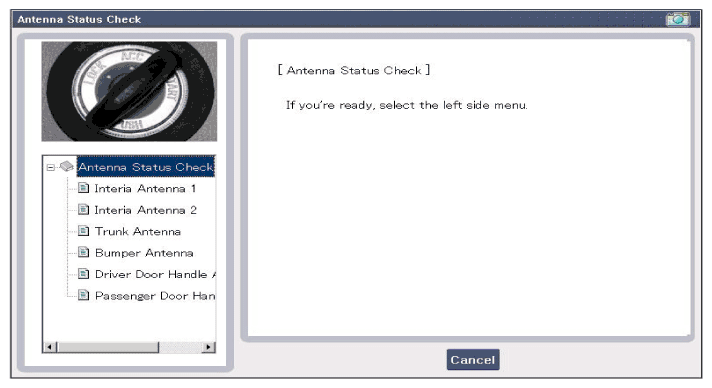

Fig 1: Selecting Antenna Status Check Button On GDS Display Screen
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

Fig 2: GDS Display Screen - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a GDS.

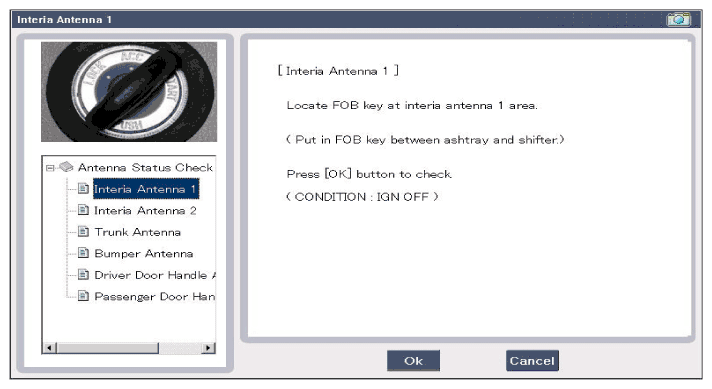

Fig 3: GDS Display Screen - Inertia Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

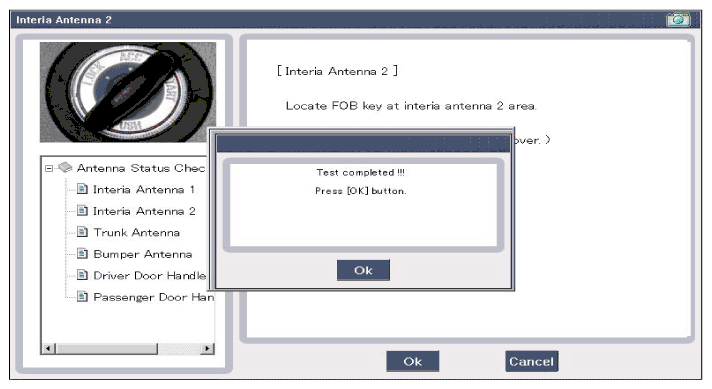

Fig 4: GDS Display Screen - Inertia Antenna 2
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key(transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- Trunk antenna
- BUMPER/Antenna
- DRV_DR Antenna
- AST_DR Antenna
