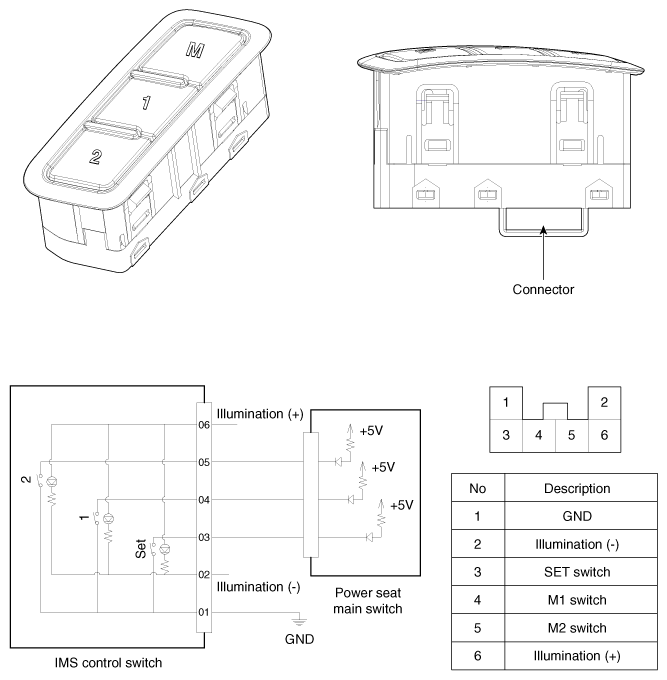

Home >> Kia >> 2016 >> Cadenza Base >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> IMS Control Switch >> Schematic Diagrams >> Circuit diagram
