Repair procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air-bag module from the steering wheel.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel cover (A) after loosening the screws.

Fig 1: Locating Steering Wheel Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch connector (A).
[LH]

Fig 2: Locating Steering Wheel Remote Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 3: Locating Steering Wheel Remote Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch (A) after loosening the mounting screws.

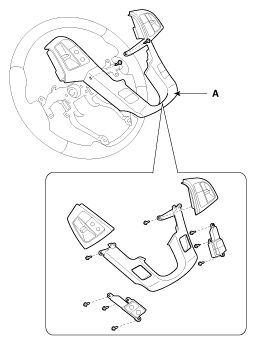

Fig 4: Locating Steering Wheel Remote Control Switch With Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
