Signal Waveform & Data

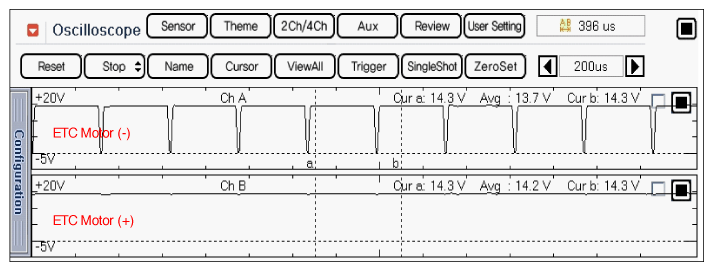

Fig 1: Screen Display - Normal Waveform Of ETC Motor With Acceleration
G11793511Courtesy of KIA MOTORS AMERICA, INC.

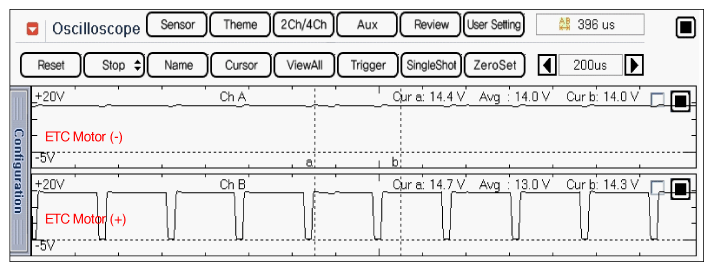

Fig 2: Screen Display - Normal Waveform Of ETC Motor With Deceleration
G11793512Courtesy of KIA MOTORS AMERICA, INC.
