Signal Waveform & Data

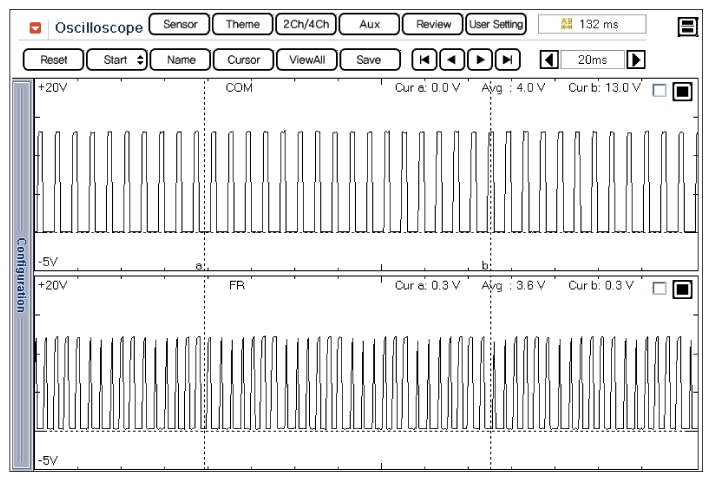

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
G11793503Courtesy of KIA MOTORS AMERICA, INC.

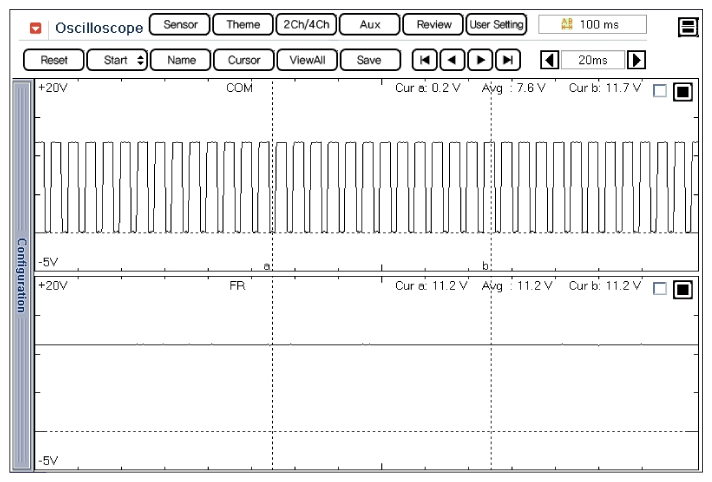

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Connector Disconnected At IG ON
G11793504Courtesy of KIA MOTORS AMERICA, INC.
