Signal Waveform & Data

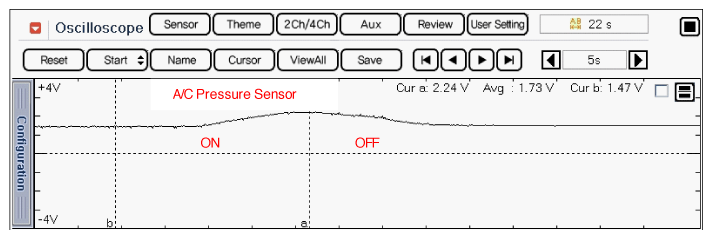

Fig 1: Screen Display - Normal Waveforms Of A/C Pressure Sensor Switch To Turning A/C OFF Switch
G11793477Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - Normal Data Of A/C Pressure Sensor Without A/C Switch ON
G11793478Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Screen Display - Abnormal Data Of A/C Pressure Sensor When A/C Pressure Sensor Circuit Open
G11793479Courtesy of KIA MOTORS AMERICA, INC.
