Signal Waveform & Data

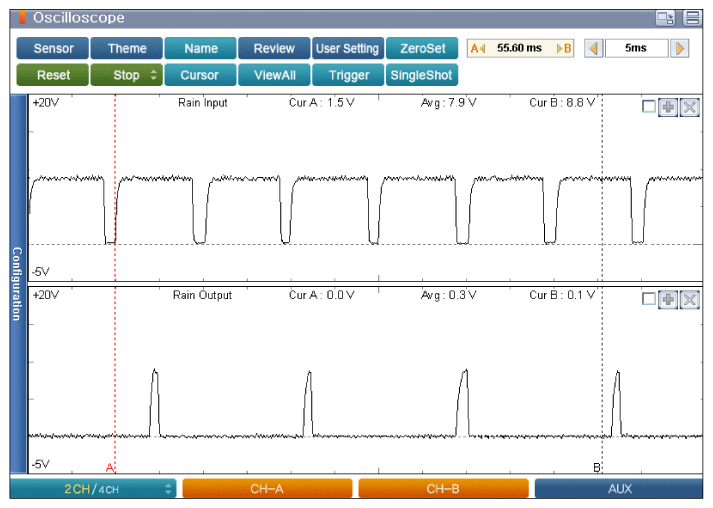

Fig 1: Scantool Display - Normal Signal Waveform Of A Rain Sensor After Turning A Wiper Off (Engine: Running)

Courtesy of KIA MOTORS AMERICA, INC.

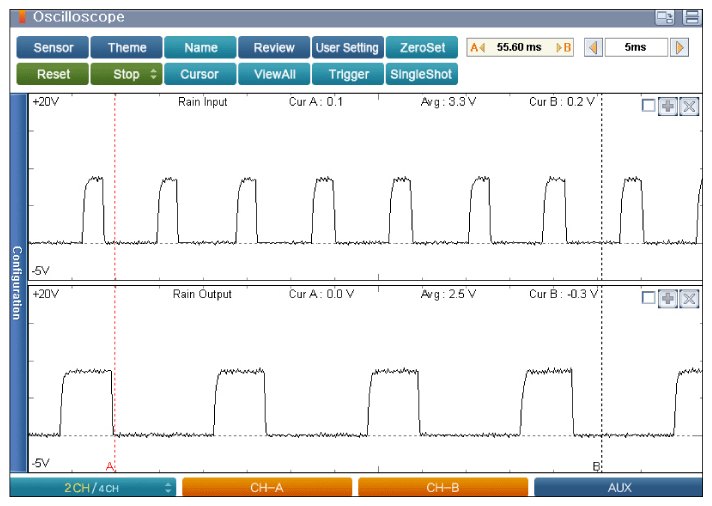

Fig 2: Scantool Display - Normal Signal Waveform Of A Rain Sensor When Positioning "Int" Switch Into The Insensitive Place (Wiper: "Auto" Position, Engine: Running)

Courtesy of KIA MOTORS AMERICA, INC.

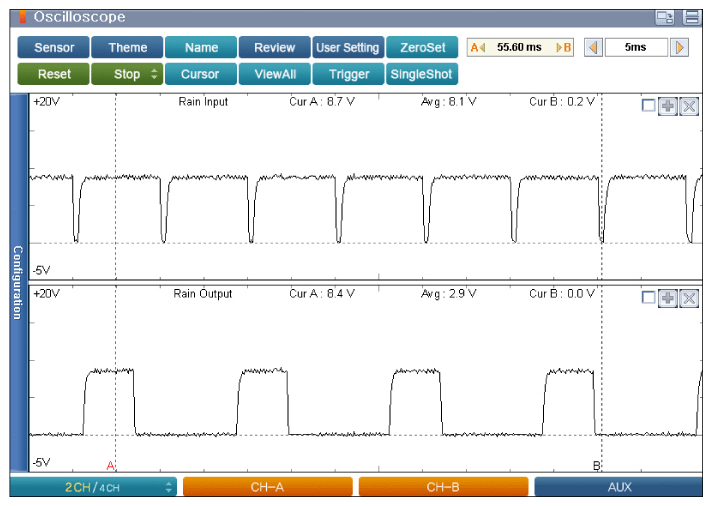

Fig 3: Scantool Display - Normal Signal Waveform Of A Rain Sensor When Positioning "Int" Switch Into The Sensitive Place (Wiper: "Auto" Position, Engine: Running)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Scantool Display - Normal Signal Waveform Of A Rain Sensor When It's Raining A Little And "Int" Switch Is At The Sensitive Place (Wiper: "Auto" Position, Engine: Running)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Normal Signal Waveform Of A Rain Sensor When It's Raining A Lot And "Int" Switch Is At The Sensitive Place (Wiper: "Auto" Position, Engine: Running)

Courtesy of KIA MOTORS AMERICA, INC.
