[Sensor Status initialization]

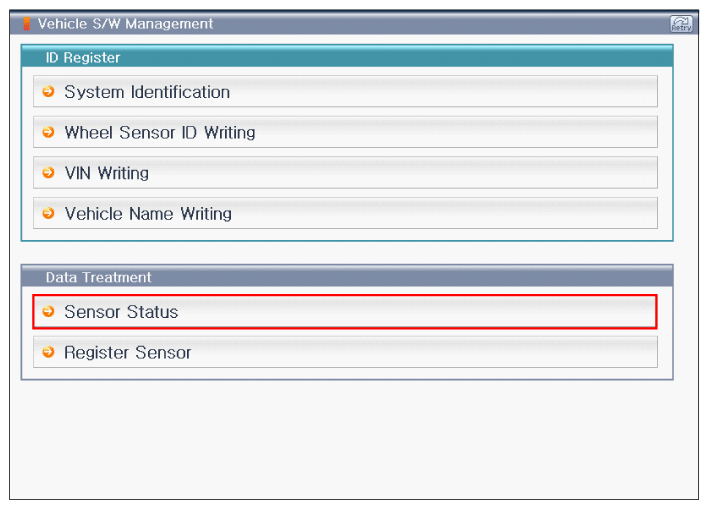

Fig 1: Screen Display - Sensor Status (1 Of 6)

G10726955

Courtesy of KIA MOTORS AMERICA, INC.

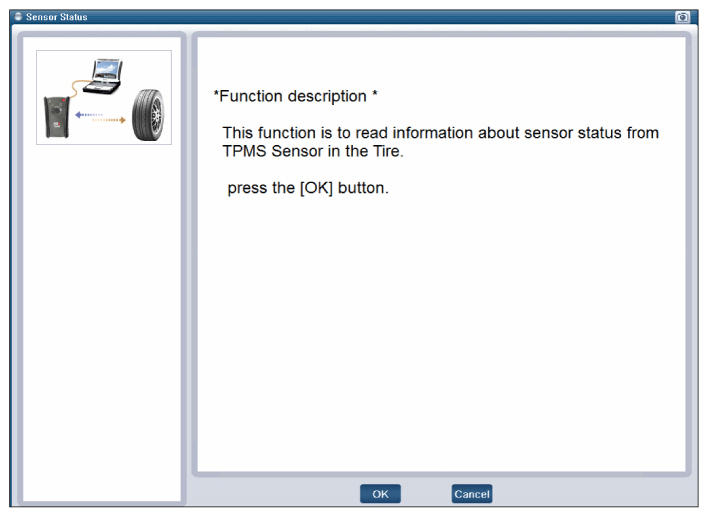

Fig 2: Screen Display - Sensor Status (2 Of 6)

G10726956

Courtesy of KIA MOTORS AMERICA, INC.

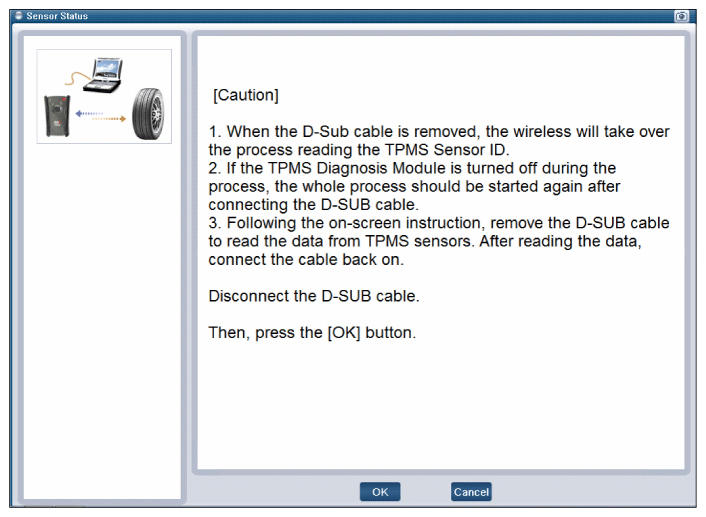

Fig 3: Screen Display - Sensor Status (3 Of 6)

G10726957

Courtesy of KIA MOTORS AMERICA, INC.

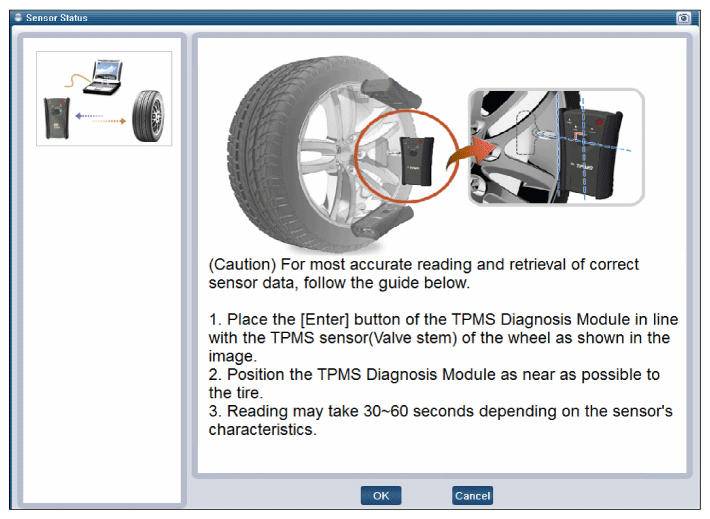

Fig 4: Screen Display - Sensor Status (4 Of 6)

G10726958

Courtesy of KIA MOTORS AMERICA, INC.

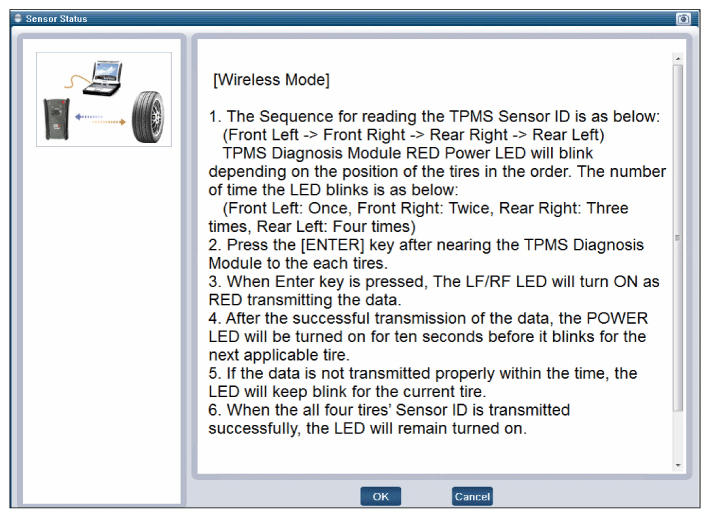

Fig 5: Screen Display - Sensor Status (5 Of 6)

G10726959

Courtesy of KIA MOTORS AMERICA, INC.

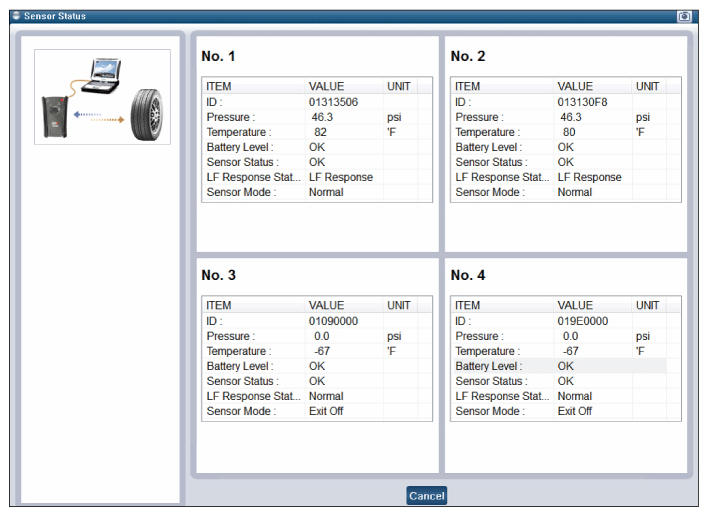

Fig 6: Screen Display - Sensor Status (6 Of 6)

G10726960

Courtesy of KIA MOTORS AMERICA, INC.
