Monitor GDS Status
- Connect GDS to Data Link Connector(DLC).
- Ignition "ON".

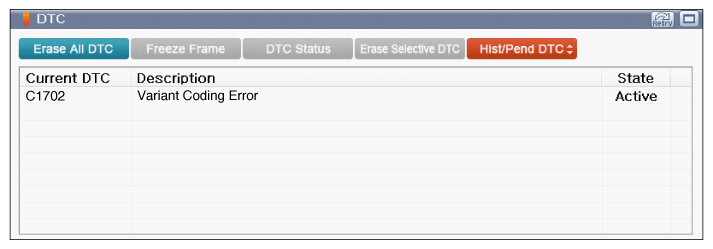

- Monitor "Diagnostic Trouble Codes(DTC) " with GDS.
- Is DTC status displayed as present?
YES
- Go to "STEERING ANGLE SENSOR CALIBRATION " procedure.
NO
- Go to "Verification Of Vehicle Repair " procedure.
